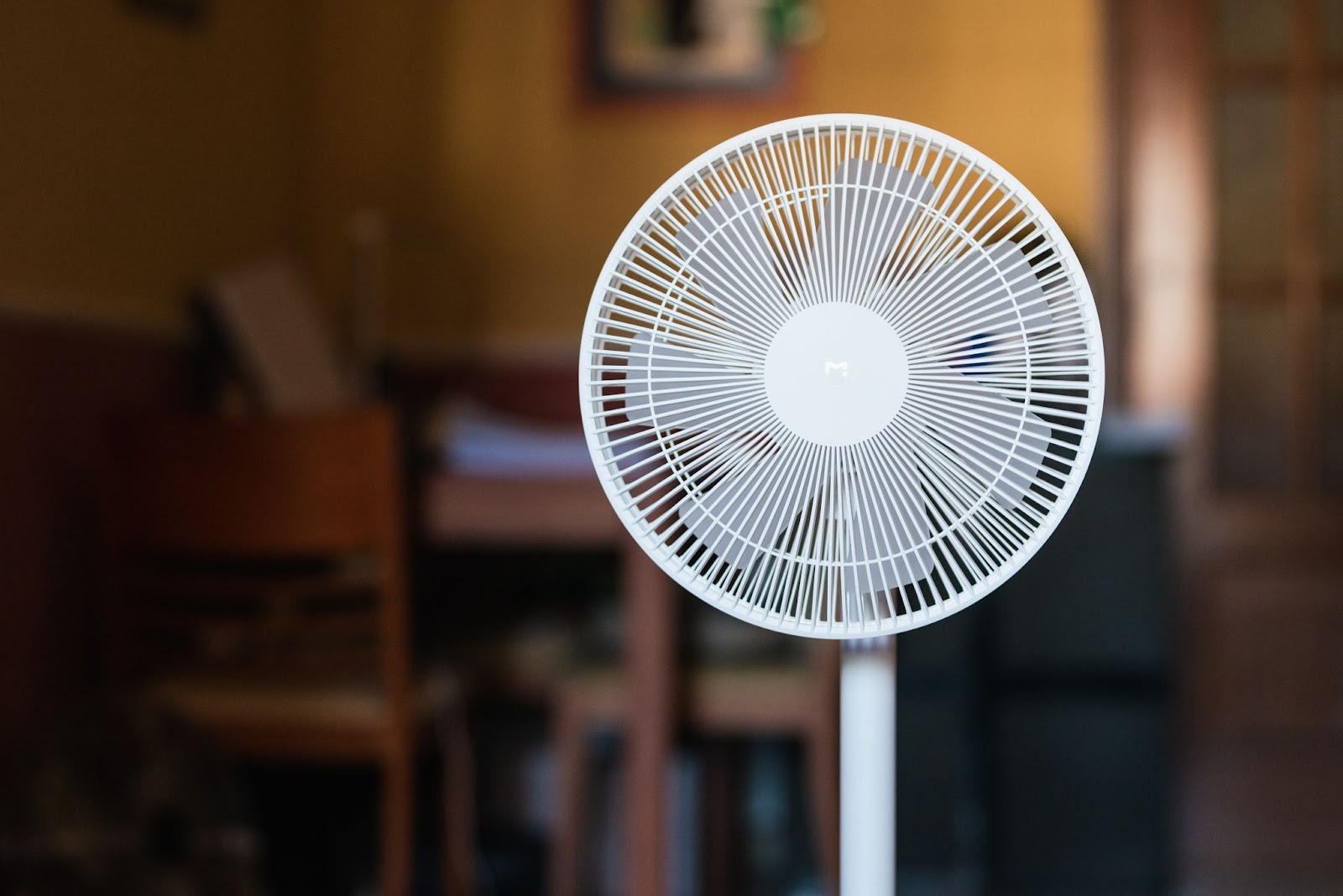

A stand fan is a useful home appliance that provides cooling airflow during warm weather. Over time, the electric motor inside the fan that powers the spinning blades can wear out and stop working properly. Replacing a faulty stand fan motor is an affordable way to restore performance and extend the usable life of the appliance, rather than buying a whole new fan.
This step-by-step guide will teach you everything you need to know to safely replace the motor in a typical stand fan found in most homes.
Understanding Stand Fan Motor Basics
Before replacing the motor, it helps to understand the basic components and operation of a stand fan electric motor.
Key Motor Components
- Stator – The stationary outer part that houses the wound copper wire coils which produce the rotating magnetic fields when powered on.
- Rotor – The inner spinning part with laminated steel plates that rotate within the magnetic fields to turn the shaft and blades.
- Bearings – Allow near frictionless rotation of the motor shaft and rotor.
- Windings – The copper wire coils wound around the stator which carry current to create rotational torque.
- Centrifugal Switch – Regulates power to the windings to maintain proper blade speeds. Opens circuit at high RPMs to prevent overspeed.
Signs of Motor Failure
Common signs that indicate a failing or bad stand fan motor that needs replacement:
- Fan not starting when turned on
- Loud, grinding noises coming from motor
- Overheating smell from fan housing
- Slow blade spinning
- Unstable wobbling of fan head
- Intermittent operation – works then stops
When you notice these failure symptoms, replacing the motor can often restore normal function.
Pre-Work and Needed Materials
Properly preparing for a stand fan motor replacement job will make the process much smoother.
Gather Tools and Supplies
You will need the following tools:
- Phillips and flathead screwdrivers
- Open wrenches – adjustable crescent style work best
- Needle nose pliers
- Wire cutters/strippers
- Voltmeter to test motor
- Work gloves for protection
Other needed materials:
- Replacement fan motor
- Electrical tape
- Penetrating lubricant spray
- Clean rags
Work Area Preparation
Choose a solid work table or bench on which to dismantle the fan. Make sure the area is:
- Clean and dry
- Well lit
- Well ventilated
Check that you have access to an electrical outlet to test the new motor after installation.
Clear sufficient space around the work zone to move freely and safely.
Safety Precautions
When working on an electrical appliance like a stand fan, follow these guidelines:
- Turn off circuit breaker supplying fan outlet before disassembly
- Ensure fan is unlugged from power source
- Check for remaining electrical charge with voltmeter
- Avoid getting metal tools near winding terminals
- Do NOT wear jewelry which can contact components
- Use eye protection from debris when disassembling
- Keep children away from work area
Step-by-Step Motor Replacement Instructions
With proper tools gathered and safety preparations made, you’re ready to begin the stand fan motor replacement process. Follow these steps in order:
Step 1: Gain Access to Motor
To expose the motor for removal, taken down fan parts must first be dismantled:
- Remove fan blade brackets by loosening screws and sliding off motor shaft
- Detach all blade arms from brackets
- Unscrew bracket or bolt sets fastening protective wire fan guards
- Remove central hub cap covering center of fan motor (pry off gently with flat screwdriver)
This fully opens up the motor compartment for work space.
Step 2: Detach Bad Motor
With the motor exposed, now disconnect and detach it completely:
- Carefully label each wire terminal connector with tape flags – “A”, “B”, “C”, etc.
- Loosen terminal screws to free stator winding connectors using needle nose pliers
- Unbolt motor frame from mounting plate on fan stand
- If stuck, apply lubricant spray onto fastener threads
- Lift motor straight out, clearing center shaft from housing
Be extremely careful not to damage coil windings when removing the old motor.
Step 3: Install New Replacement Motor
- Check that voltage specs match rating on old motor (usually 120V AC)
- Center shaft hole on new motor should align with hole in fan stand mount plate
- Rotate shaft gently to feed wires through opening first
- Align bolt holes and fasten tightly in diagonal pattern to ensure uniform contact
- Pull all windings through opening into housing and out fan rear
- Refer to terminal labels removed before and connect winding connectors properly to new motor
- Wind any excess wire slack around frame to prevent interior interference
- Reinstall wire guard brackets to protect new windings
With the motor reinstalled securely, reassembly continues.
Step 4: Reassemble Fan
Put all fan components back in reverse order:
- Slide fan blade arms into brackets on motor shaft, aligning set screw holes
- Tighten blade arm set screws equally on flat sides of shaft
- Replace central hub cap over new motor
- Reinstall protective wire guards with mounting brackets
- Carefully align blades at equal angles so rotation stays balanced
Step 5: Confirm Motor Operation
- Restore circuit breaker or plug power cord back into outlet
- Flip stand fan on at base setting to start at slow speed
- New motor should run smoothly and quietly, increasing speed when set to high
- If loud or uneven motion occurs, turn off immediately and check for issues
- Verify cooling airflow moves out front grill when holding hand behind blades
Normal airflow confirms your new replacement fan motor operates properly.
Read More: 10 Tips and Tricks to Clean Your Appliances
Troubleshooting Issues
If any problems arise with the new motor operation:
- No startup – Check all wiring connections
- Overheating – Bolts may be too tight distorting frame
- Excessive noise – Bearings could be misaligned
- Wobble/Vibration – Blade arms likely loose on shaft
- Intermittent stopping – Windings shorting; insulation damage
Adjust motor or fan as needed to correct any defects occurring.
Congratulations on restoring full function to your stand fan! Just be aware that other internal parts can still fail over time like bearings, switches, or windings. But you now know to change out a worn motor.
Helpful Motor Replacement Tips
Keep these additional tips in mind when replacing a bad stand fan motor:
- Test operation first by plugging into power before fully reassembling
- New motor shaft should slide right into old bearing holes
- Match mounting hole locations between old and new motors
- Hand tighten screws first then use wrench for final turns
- Do NOT bend or cut coil lead wires too short – leave some slack
- When reconnecting wires, ensure tight terminal joins are made
- Scrape away old insulation properly before rewrapping joints
- Fan may produce burning smell initially; let run 10 minutes to set brushes
Following proper installation procedures will significantly extend the lifespan of your new replacement fan motor.
Know When Professional Help is Needed
While the average handy homeowner can replace basic single-speed fan motors, some new models have more complex variable-speed motors and electronic controls.
Signs you may need professional help:
- Motor has circuit board attached
- More than two winding wire connectors
- Special electronic speed or touch controls
- Unclear part numbers or rating labels
- Shaft mount or base bolt patterns differ from old motor
Seeking professional assistance can be wise when unfamiliar stand fan motor technology is involved. They have the advanced knowledge and resources to properly diagnose and service complicated fan motors.
Conclusion
Replacing a worn out electric motor is often the most affordable repair option for restoring function and extended usage to your stand fan rather than purchasing a whole new expensive unit.
Now equipped with detailed disassembly and installation guidance, you can confidently take on stand fan motor replacement jobs as needed in any home, office, garage or workshop setting.
Bookmark and share this practical visual guide for friends and family to have as a go-to handy reference when their trusty old fan motors eventually burn out after years of reliable operation.
Confidence to repair and renew products rather than wastefully discarding keeps additional materials out of landfills – benefitting both household budgets and environmental resources.
