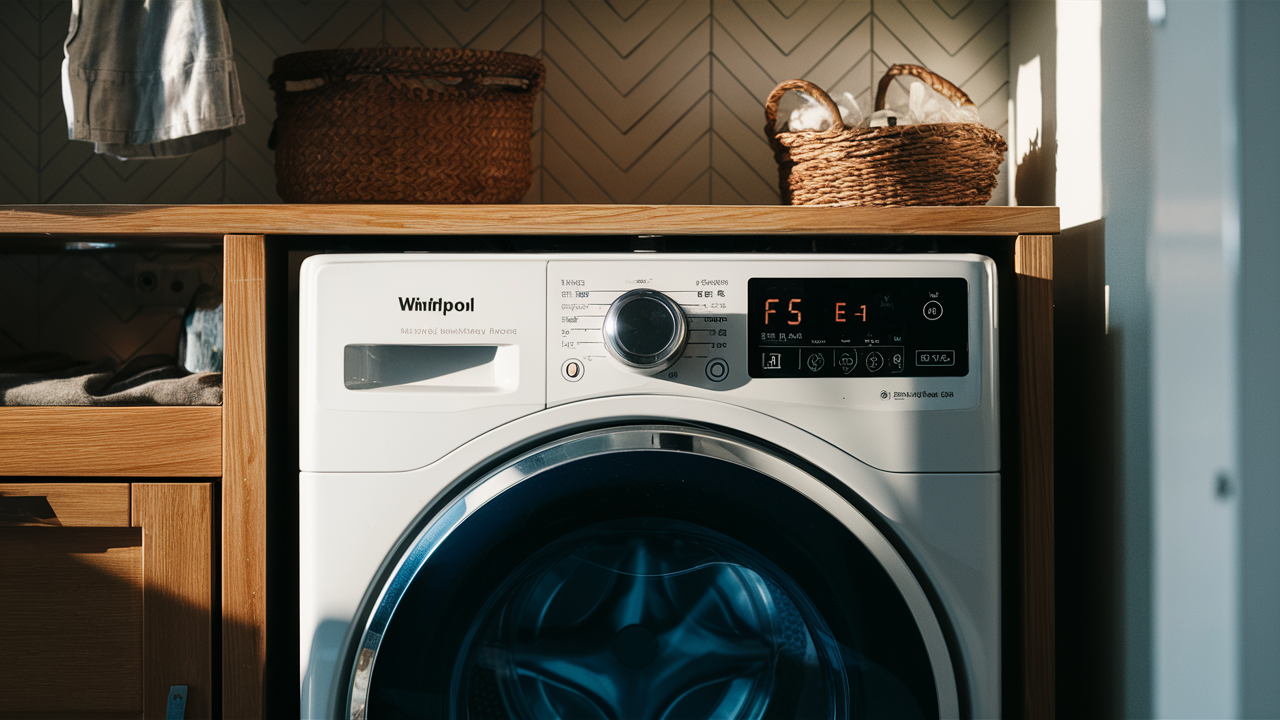

Tired of your washing machine interrupting your laundry routine with a frustrating error code? If your Whirlpool front loader keeps displaying F5 E1, it’s time to solve the mystery. This common issue points to a problem with the door lock, preventing the safe operation you need. But fear not – fixing it yourself is absolutely possible. This guide will walk you through comprehensively troubleshooting the root cause and potential solutions, from inspecting components to testing connections. By the end, your washer should be back to flawlessly washing loads without any odd codes getting in the way.
What does the F5 E1 error code mean?
Seeing an F5 E1 error code pop up on your Whirlpool washing machine can be confusing and worrying. But don’t stress! This article will explain everything you need to know about this error code, including what causes it and how to fix it.
Definition of the error code
The F5 E1 error code indicates an issue with the door lock mechanism on your washing machine. Specifically, it means the washer cannot lock the door closed to safely start a wash cycle.
Reasons behind the error message
There are a few common reasons why you might see this error code:
- Harness connector issues – The wiring harness connects the door lock assembly to the control board. If these connectors are damaged or loose, it can cause the F5 E1 code.
- Overloaded drum or obstructed door – If you overload the washing machine drum or accidentally get an article of clothing caught in the door, it can prevent the door from locking properly.
- Damaged or obstructed door switch mechanism – There is a door switch that activates when the door properly latches shut. If this switch or mechanism is dirty, worn out, or obstructed, it will cause issues with the door lock.
When the F5 E1 error appears, you will hear the washing machine beep three times repeatedly. This audible code corresponds to the error code on the display.
How to Fix the F5 E1 Error
Resolving the frustrating F5 E1 error code on your Whirlpool washing machine is totally possible with some targeted troubleshooting. This guide will walk you through the entire process step-by-step.
Gather the Proper Tools and Resources
Before doing any work on your washer, make sure you have the right tools, supplies, and information handy. Trying to find a screwdriver mid-repair is no fun! Here’s exactly what you’ll need:
- Screwdriver set – Both Phillips and flathead screwdrivers in various sizes to remove screws and panels. Make sure they are in good condition and fit snugly.
- Multimeter – This tool will let you measure electrical resistance and troubleshoot connections. An inexpensive basic multimeter will work fine.
- Pliers – Standard locking pliers can help grip and maneuver small parts.
- Flashlight – To illuminate the inner workings of the machine as you work.
- Work gloves – Wear thick rubber gloves to protect your hands from sharp edges.
- Safety glasses – Flying debris or dirt in your eyes wouldn’t be ideal, so grab some protective eyewear.
- Parts tray – A small container, magnetic parts bowl, or even a cookie sheet will keep all those tiny screws organized.
- Service sheet – This critical piece of info provides wiring diagrams, test procedures, troubleshooting charts, and step-by-step instructions tailored to your specific Whirlpool model. Search online or contact the manufacturer if you don’t have it.
Step-by-Step Troubleshooting and Repair
With your tools prepped, it’s gone time! Follow these steps in order:
- Inspect the door lock area – Get up close and personal with the door latch area. Look for any obvious obstructions, damage to the locking mechanism, bent parts, etc. Remove anything stuck in the lock opening.
- Unplug and disconnect power – Before any appliance repair, for safety, ALWAYS unplug it from the wall and shut off electrical power. No exceptions!
- Remove the top panel – Refer to your service manual for the proper procedure to remove the top control panel. This will expose the internal wires and components for troubleshooting.
- Check wire connections – Ensure the wire harness connectors are firmly plugged into the main control board and door lock mechanism. Push/pull on them carefully to reseat if needed.
- Conduct a door lock system test – Using the precise testing method outlined in your service sheet, activate the various components and test if the door locks properly engage. If problems occur, you know the issue lies with the lock mechanism itself.
- Use a multimeter to measure resistance – With power disconnected, test the electrical resistance values across different points in the door lock circuit. Consult your service sheet for the specific testing points and normal range expected. Any readings way outside the spec could signal a bad lock or wiring problem.
- Inspect door lock wires and connectors – Remove any screws securing the door lock assembly and carefully shift it to visually inspect the wiring and connectors. Look for damaged insulation, bare wires, corroded connections, etc. Repair or replace any faulty wiring as needed.
- Replace entire lock if needed – If you’ve verified the wiring is intact, but the lock still fails to test, follow the manufacturer’s instructions to fully remove and replace the entire door lock mechanism with a new one.
- Reinstall and test – Carefully reassemble all the washer components and panels you removed. Restore electrical power and test run a cycle with no laundry. Verify that the F5 E1 error is gone for good!
Take your time and be methodical as you work through each step. With perseverance and the right information, you can troubleshoot even the most cryptic washer error codes like F5 E1.
Also Read: DIY Guide to Troubleshooting F3E1 Error Code on Your Whirlpool Washer
Conclusion
Now that we’ve walked through the steps to diagnose and fix the F5 E1 error code on a Whirlpool front load washer, let’s recap what we’ve learned.
Fixing the F5 E1 error code involves:
- Checking the door lock mechanism
- Unplugging the washer and disconnecting the power
- Removing the top panel
- Checking the connectors
- Doing a Door Lock System test
- Measuring resistance
- Checking door lock wiring
- Replacing door lock mechanism if needed
- Reassembling and testing washer
Using a multimeter to measure resistance and following the service sheet instructions are key to correctly diagnosing the issue.
Importance of Properly Addressing the Issue
An F5 E1 error means the washer door is not locking properly. This could lead to leaks or other problems during the wash cycle.
By taking the time to pinpoint the cause and fix it, you’ll get your washer functioning normally again. No more inconvenient error codes interrupting your laundry day!
Proper door lock operation also prevents accidents. An open door during the wash cycle could allow water to spill out.
In summary, don’t ignore error codes. Taking action ensures safe operation and maximizes the life of your washer. The sense of accomplishment after a successful DIY repair is a bonus!
