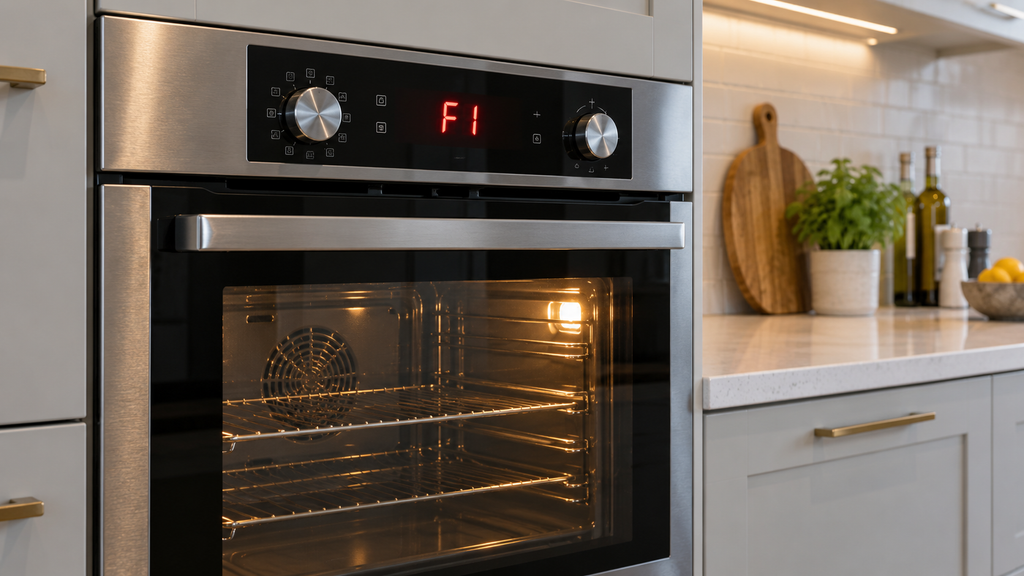

F1 means the control detected a fault on its own side, usually a stuck key, a failed keypad or a board problem, and on a few brands a sensor fault; it does not prove the board is dead. This guide explains oven error code f1 meaning with observations first, model-specific checks second, and a part decision only after a repeatable result. That order keeps a free correction from turning into an unnecessary part order and gives a homeowner a clear point to stop when the work moves beyond safe DIY testing.
What F1 Means on Each Brand
These checks help narrow oven error code f1 meaning without buying the first part that seems possible.
- Whirlpool oven F1 error = control or keypad.
- Frigidaire F1 = control or sensor by suffix.
- GE = loss of relay driver backup, control side.
- LG = control side.
- Samsung F1 error = control or sensor by model.
- The suffix digit or letter narrows it.
Repeat any surprising result once. Confirm the meter setting, disconnect the required wire, and use clean probe contact before treating the result as final.
Code Table
| Code | What it means | What it does NOT prove | Parts implicated | Test first |
| Whirlpool F1 | Control or keypad fault on many models | The board is not proved dead | Keypad, control, harness | Reset, then keypad isolation |
| Frigidaire F1 or F1 suffix | Control or sensor family fault by suffix | One part is not proved without the suffix | Control, keypad, sensor | Read the complete code |
| GE F1 | Control-side relay-driver or keypad fault on many models | The board alone is not proved | Control, keypad, harness | Inspect wiring and isolate keypad |
| LG F1 | Control-side fault on applicable models | A universal meaning is not proved | Control and harness | Check the model service sheet |
| Samsung F1 | Control or sensor family fault by model | The board is not automatically bad | Control, sensor, harness | Read the model code table |
| Bosch F1 | Model-family control or sensor fault | A cross-brand definition does not apply | Control, sensor, wiring | Use the full model-specific code |
Use the table as a starting point, not as proof. More than one fault can create the same symptom, so the next section narrows the result with an inspection or meter reading before any part is ordered.
The Reset-Then-Return Test
These checks help narrow oven error code f1 meaning without buying the first part that seems possible.
- Power off at the breaker for 5 minutes.
- If F1 returns at once with nothing pressed, keypad or board.
- If it returns only when a key is pressed, keypad.
- If it returns while baking, sensor.
- How long to wait.
Repeat any surprising result once. Confirm the meter setting, disconnect the required wire, and use clean probe contact before treating the result as final.
Verify Your Model First
The model tag on a range is under the lift-up cooktop, on the oven door frame, inside the storage drawer, or on the back of the unit; a wall oven carries it on the frame behind the door. The same part name (igniter, bake element, temperature sensor, control board) has several part numbers by model because wattage, bracket shape and connector type change between models.
A matching photo is not enough. Compare the connector, mounting points, electrical rating, and any revision suffix with the model-specific listing.
Safety
- Unplug the range or turn off the double breaker.
- Shut the gas on a gas range.
- Static and the board.
- Photograph every connector.
- Do not pull ribbon cables by the wire.
Tools
- Multimeter
- 1/4 inch nut driver
- Phillips screwdriver
- Flashlight
- Phone camera
How to Fix F1 Error on Oven: Check the Wiring and Keypad Before the Board
Check the Wiring and Connections
- Unplug the range and shut off its gas supply when it is a gas model.
- Place the control panel in the service position described by the model manual.
- Inspect every control-board harness and terminal for cut, frayed, pinched, or loose wiring. Repair damage and reseat loose plugs.
- Look for burns or bare areas in the insulation and replace damaged insulation or wiring.
- Confirm that the board terminals are straight, undamaged, and making firm contact.
- Compare every connection with the unit wiring diagram.
Isolate the Keypad
- With power off, disconnect the keypad ribbon from the control board.
- Restore power without touching exposed parts.
- A code that stays away with the keypad disconnected points to the keypad or touchpad.
- A code that returns with the keypad disconnected points to the board after the wiring has passed.
- Turn power off again and reconnect the ribbon before reassembly.
Keypad or board confirmed? Find the exact keypad or control board for your model number.
What the Result Means and Which Part to Order
These checks help narrow oven error code f1 meaning without buying the first part that seems possible.
- F1 gone with keypad unplugged = touchpad or keypad.
- F1 with keypad unplugged = oven control board.
- F1 during bake on sensor-coded brands = oven sensor, link O03.
- Damaged harness = harness.
Repeat any surprising result once. Confirm the meter setting, disconnect the required wire, and use clean probe contact before treating the result as final.
Frigidaire F1 Code Reset and Other Brand Resets
These checks help narrow oven error code f1 meaning without buying the first part that seems possible.
- Breaker reset.
- Cancel key.
- What a reset clears.
- When a reset is a test, not a fix.
Repeat any surprising result once. Confirm the meter setting, disconnect the required wire, and use clean probe contact before treating the result as final.
When to Stop and Call a Professional
- Stop when live-voltage testing is required and safe meter work is unfamiliar.
- Stop when wiring, terminals, or insulation show heat damage.
- Stop when the procedure or connector layout does not match the model documentation.
- Use professional service for sealed-system refrigerant work, repeated breaker trips, or a repair that requires unsafe lifting.
FAQ
How do I fix F1?
Start with the free observation named in the table, then follow the tests in order. The first clear failed result identifies the next repair decision.
Do I need a technician for F1?
Start with the free observation named in the table, then follow the tests in order. The first clear failed result identifies the next repair decision.
How do I reset the error code?
A power cycle or model-specific reset may clear a control state, but it cannot repair an open coil, broken switch, blocked hose, or damaged motor.
What does F1 mean?
Start with the free observation named in the table, then follow the tests in order. The first clear failed result identifies the next repair decision.
Conclusion
An F1 code that returns after a reset deserves a model-specific diagnosis before a part is purchased. The code may point toward the control, keypad, sensor, or related wiring, depending on the brand family and model.
When the service information and tests confirm a failed control, homeowners can shop oven control board parts for your model and compare every connector and revision number. If the meaning remains unclear or live testing is required, schedule professional service rather than guessing from the code alone.
