Oven Convection Fan Installation Guide

Learn to install a convection fan in your oven with our easy guide. Enhance cooking efficiency with 25+ detailed steps for a DIY project.

By
Kris Escueta
Kris Escueta
Kris Escueta
More by this Author

Installing a convection fan in your oven can significantly improve heat circulation and cooking efficiency. While the process requires care and attention to detail, it is a manageable DIY project for most homeowners.

This guide will walk you through the convection fan installation process in over 25 detailed steps. We’ve left no stone unturned!

Pre-Installation Steps

Before beginning the actual fan installation, there are some important preparatory steps to take. Rushing into the project without proper planning can result in electrical hazards, damage to your oven, or even personal injury.

Step 1: Assess Tools & Materials Needed

You will need the following tools:

  • Phillips and flathead screwdrivers
  • Wrench set
  • Wire strippers -Voltage meter

Materials:

  • Convection fan kit (includes fan, brackets, hardware, wiring)
  • Gloves for protection
  • Shop vacuum

Ensure you have all necessary tools and components before beginning.

Step 2: Review Oven Manual

Consult your oven’s manual for model-specific guidance, including:

  • Wiring diagrams
  • Fan dimensions
  • Mounting instructions
  • Safety notices

Follow all specifications and procedures provided by the manufacturer.

Step 3: Ensure Electrical Safety

Take steps to prevent electrical hazards:

  • Locate the breaker switch connecting power to the oven and switch it OFF
  • Unplug oven in case switch malfunctions
  • Test with a voltage meter to guarantee power is disconnected
  • Keep water/liquids away from electrical components

With the proper preparations complete, you’re ready to move on to oven disassembly.

Prepare the Oven for Fan Installation

Before accessing the internal fan housing to remove and replace the convection fan, we must fully deconstruct the oven.

Step 4: Disconnect Power to Oven

Even if you have turned off the breaker/unplugged the unit, double-check that the oven is disconnected from any power source before proceeding. Test with a voltage meter.

Safety first!

Step 5: Remove the Oven Door

  • Fully open the oven door. Locate the hinge lock tabs.
  • Pull the hinge locks down toward oven floor until they snap into a 90-degree angle.
  • Close the door to the point where the locks hit the oven frame.
  • Lift door up and out. Place aside carefully.

Step 6: Remove Racks & Oven Bottom

  • Slide out oven racks and set aside with care.
  • Locate screws around the edges of oven bottom panel.
  • Use a Phillips screwdriver to remove screws and detach bottom.

With racks and bottom removed, you now have clear access to the internal fan housing.

Access the Convection Fan Housing

To complete the installation, we must detach and fully expose the metal compartment enclosing the convection fan.

Step 7: Remove Top & Side Panels

  • Remove warming drawer or storage drawer below oven, if present.
  • Use a Phillips screwdriver to remove top control panel screws.
  • Locate screws along top, side, and rear edges of oven exterior. Remove them.
  • Carefully detach the panels, sliding them off one at a time.

Step 8: Detach Fan Compartment

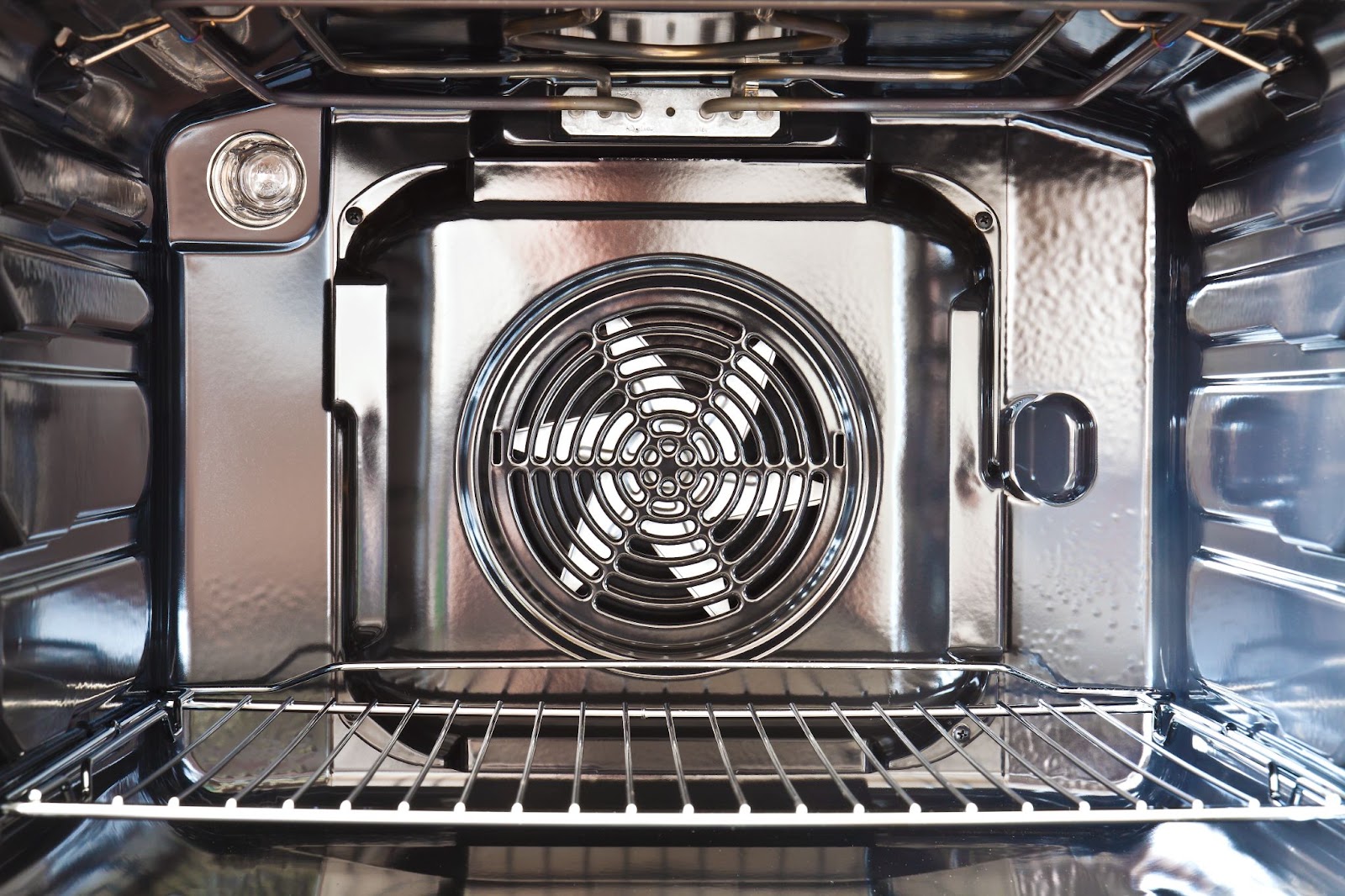

You should now see the convection fan compartment, likely at the rear wall of the oven cavity.

  • Remove mounting screws connecting the fan compartment to oven wall. Set them aside separately.
  • Detach compartment carefully without straining connected wiring.
  • Rest the compartment on a flat, stable surface with access to wiring.

You now have access to the fan for replacement.

Remove the Old Convection Fan

With wiring still attached, we’ll now remove the non-functional fan from the oven compartment.

Step 9: Disconnect Fan Wiring

  • Locate wiring plug connecting fan unit to power source.
  • Depress locking tabs on both sides of plug.
  • Gently unplug wiring harness.

Step 10: Remove Fan Mounting Screws

  • Use a Phillips head screwdriver to remove all screws securing the fan and mounting brackets on either side.
  • Carefully set them aside. You may need longer versions for the new fan.

Step 11: Lift Fan Out of Compartment

  • Note exactly how the fan is positioned within the compartment. You’ll need to replicate this setup.
  • Carefully slide fan unit with mounting brackets out and place it on flat, secure surface.

With the old fan removed, it’s time to install the new replacement fan.

Install the New Convection Fan

Installing the new convection fan is the most intricate stage. Ensure wiring is correct and fan is securely mounted.

Step 12: Position Mounting Brackets

  • Align the new fan’s mounting brackets to match positioning of old fan setup.
  • You may need to loosen bracket hardware to adjust position.

Step 13: Attach Wiring Harness

  • Consult oven wiring diagram to identify precise connections.
  • Match colored harness wires to destination wires for fan power.
  • Firmly push wires onto connection terminals until locking tabs click into place.

Step 14: Mount Fan into Compartment

  • Ensure wiring allows fan unit to be safely inserted without pulling/tension.
  • Align fan assembly to engraved guiding marks inside compartment, if present.
  • Insert mounting bracket screws but do not fully tighten yet.

Step 15: Connect Fan to Power Source

  • Locate free end of wiring harness leading back to oven power source.
  • Determine harness connector landscape and match it to fan plug.
  • Fully insert fan wiring plug until release tabs click securely into place.

The new convection fan is installed! But we still need to test operation before wrapping up.

Reassemble Oven After Fan Installation

With the new fan correctly in place, we can reassemble the oven components.

Step 16: Reattach Fan Compartment

  • Grab compartment mounting screws you set aside after removal.
  • Insert screws through pre-drilled holes and securely tighten them into oven wall.

Step 17: Replace Oven Panels & Drawers

  • One by one, carefully slide side and top panels back onto oven frame.
  • Reinsert panel screws and fully tighten with Phillips screwdriver.
  • Replace warming or storage drawers below oven if previously removed.

Step 18: Replace Racks & Bottom Panel

  • Match rack side rails back into their roller slots.
  • Realign oven bottom panel holes to rest on securing screws.
  • Hand-tighten bottom panel screws using screwdriver.

Step 19: Reattach Oven Door

  • Hold door at 90 degree angle, aligning hinges to slots.
  • Fully insert hinges into receptacles at equal depth.
  • Flip hinge locks up into locked position, securing door.

That completes the physical oven reassembly!

Wrap Up the Installation

With everything put back together, complete a few final steps to ensure proper function and safety.

Step 20: Power Up & Test Fan Operation

  • Plug oven back into power source, or flip circuit breaker to ON position.
  • Switch on oven light and convection modes to visually and audibly check that new fan powers up and runs smoothly without odd sounds or vibrations.

Step 21: Clean Up Installation Area

  • Use a shop vacuum to pick up any screws, dirt, or debris leftover from the installation job.
  • Wipe down exterior and interior oven surfaces to remove dust and fingerprints.

Step 22: Review Documentation

  • Consult instruction manuals again and review all steps related to fan installation that you performed.
  • Ensure you didn’t miss anything important required by the manufacturer.

Step 23: Take Photographs

  • Take clear, well-lit photos documenting the new fan installation from multiple angles.
  • Pictures provide useful records showing wiring, positioning, and bracket setup.

Step 24: Note Model & Serial Numbers

  • Record model number and unique serial number/code of new fan.
  • This will help when ordering replacement parts.

Step 25: Recycle Old Fan

  • Properly dispose of old, nonworking convection fans according to local electronics recycling guidelines.
  • Safely scrapping the outdated fan is the final piece of the installation process.

Also Read: How to Replace a Broken Convection Oven Fan: A DIY Guide

Conclusion

And there you have it! By following these 25 hyper-detailed steps, you can safely and effectively replace the convection fan in your oven. While it’s an extensive project, take it slow and focus on each stage—you’ll complete the upgrade before you know it.

Here’s a quick summary of the complete convection fan installation process:

  1. Pre-Installation Prep
  2. Disassemble Oven
  3. Access Fan Compartment
  4. Remove Old Fan
  5. Install New Fan
  6. Reassemble Oven
  7. Complete Installation

We hope this step-by-step walkthrough gives you the confidence to tackle this DIY kitchen upgrade yourself. Just be sure to always place safety first and get help if needed.
