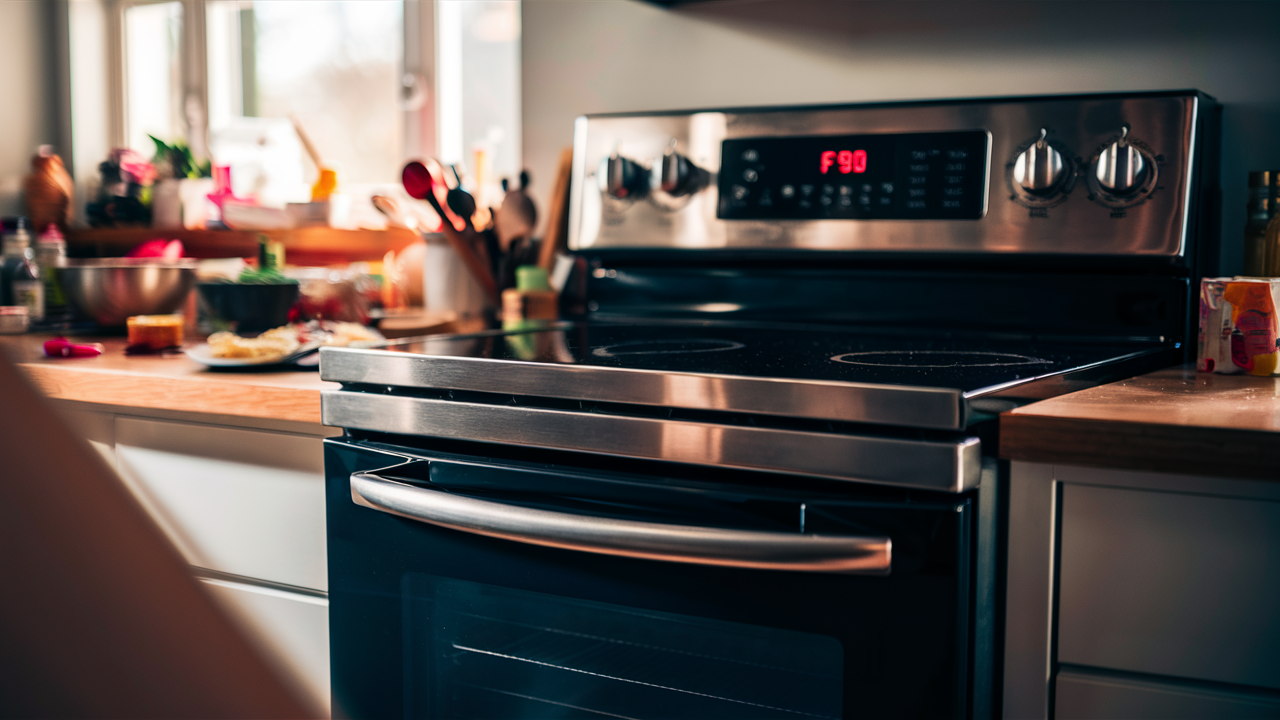

Troubleshooting appliance error codes can be tricky, but with the right approach, problems can be fixed. One common issue owners of Frigidaire ranges face is error code F90, which indicates a fault with the oven door lock. This code causes frustration by limiting the ability to use the oven. However, by carefully following a methodical, step-by-step process to examine wiring and check switches and motors, a technician can identify the root cause. Let’s walk through the process used to solve the F90 problem step-by-step and learn how a little persistence can get an appliance up and running again.
Safety Tips
When working on your range, safety should always come first. Being safe can help prevent accidents, injuries, and damage. Here are some important safety tips to follow:
1. Power Off and Unplug
Before doing any work on your range, you’ll want to cut off power to it. There are a couple of ways to do this:
- Unplug the power cord from the outlet
- Turn off the circuit breaker for the range
This helps prevent electric shock while you’re working. No one wants to get zapped by live wires!
2. Let it Cool
If you’ve used your range recently, parts of it may still be very hot. You don’t want to burn your fingers! Let the range cool completely before starting work.
3. Shut Off the Gas
For gas ranges, make sure to turn off the gas supply so no gas is flowing during the repair. Safety first!
4. Work Slowly and Carefully
Rushing repairs can lead to mistakes and injuries. Take your time and be careful in your work. It’s better to work slowly than get hurt!
5. Ensure Good Lighting
Make sure the area you’re working in is nicely lit. It’s hard to see what you’re doing in the dark! Turn on all nearby lights or bring in a portable work light.
6. Clear the Area
Get rid of clutter and move any objects that are in the way. You’ll need clear access to work comfortably. Tripping on stuff could cause an accident.
7. Avoid Wet Hands
Water and electricity don’t mix! Dry your hands thoroughly before working. Wet hands increase the risk of shock.
8. Consult the Manual
Your range’s user manual will have specific instructions related to safety and repairs. Give it a read! The manual might have useful warnings.
9. Handle Parts Gently
Don’t force or damage any parts while handling them. Parts like wiring can be delicate. Work gently to avoid breakages.
10. Wear Insulated Gloves
To protect from heat and shocks, wear thick rubber gloves while working. Safety first!
11. Avoid Live Wires
Prevent shocks by not touching wires or terminals while the range is plugged in. Live electricity hurts!
12. Take Notes on Wiring
Before disconnecting any wires, take photos or notes to remember how they were originally connected. This makes reassembly easier.
13. Don’t Test Live Voltage
If you’re inexperienced with a multimeter, avoid testing live voltage. Mistakes could cause shocks. Only test voltage with a meter if you’re 100% comfortable with the process!
The most important thing is working slowly, carefully, and keeping safety in mind. Follow these tips to prevent accidents and make your repair go smoothly!
Troubleshooting the F90 Error
Seeing an F90 error code pop up on your Frigidaire range? Don’t worry, this error is fixable with some simple troubleshooting steps. Let’s walk through how to diagnose and fix this problem.
Step 1: Check the Wiring Connections
Faulty wiring is one of the most common causes of the F90 error. Here’s how to check the wiring:
- Unplug the range and turn off the gas supply (if gas model). Safety first!
- Take off back panels to access wiring.
- Check connections between the control board and oven door lock assembly. Do you see any loose, damaged, or corroded wires?
- Fix any faulty wiring you find. Tighten loose wires, splice damaged wires or replace corroded wires.
Double check all wiring connections before moving on. Do you have a wiring diagram from the manual? This can help ensure every wire goes to the right place.
Step 2: Check the Door Lock Switch
If the wiring checks out, the next thing to test is the door lock switch. Follow these steps:
- Unplug the switch from the control board.
- Use a multimeter on the “continuity” setting.
- Test the switch contacts in both switched positions.
- Is there continuity in one position but not the other? If not, the switch could be bad.
- Replace the faulty switch or wiring as needed.
Checking this switch ensures the control board is getting the right signals to lock and unlock the oven door.
Step 3: Check the Oven Door Lock Motor
Still, seeing the F90 error code after checking the wiring and switch? The issue may be with the door lock motor. Here’s how to test it:
- Set your multimeter to measure resistance (Ohms).
- Check the resistance through the motor’s wires.
- It should read around 3,600 Ohms if it’s good.
- If not, test the motor separately. If the motor tests are bad, replace them.
- If the motor tests fine, the issue is likely the connection to the control board. Replace any faulty wiring.
This checks if the motor is functioning and getting power. No power = no locking!
Also Read: How to Fix the F23 Error on Your Frigidaire Electric Range
Putting It All Back Together and Making Sure It Works
You’re almost done! After all that troubleshooting, it’s time to put the range back in one piece. Then we can check if we really fixed the F90 error code for good.
Step-by-Step Reassembly
Follow these steps to put the range back together safely:
- Carefully slide the range back into place in the kitchen. Be gentle and go slow so you don’t scratch the floor.
- Plug the power cord back into the outlet.
- Put all the panels and covers back on the range. Line them upright and screw them back in place.
- If it’s a gas range, turn the gas supply back on.
- Look at the display panel. The F90 error code should be gone now!
- Reset the clock to the right time.
Testing It Out
The moment of truth! Let’s make sure we really got rid of that pesky F90:
- Try locking and unlocking the oven door a few times. The lock should click smoothly in place and retract with no issues.
- If it’s an electric range, turn on the oven and make sure it heats up.
- For a gas range, test the burners. Turn them on and make sure you get nice, even flames.
- Try out any special cooking functions like convection baking.
If everything works perfectly with no new error codes, congratulations! You successfully troubleshot and fixed the F90 error. Grab a tasty snack out of the now-working oven and pat yourself on the back.
What If the F90 Returns?
But if you see the F90 pop up again, don’t worry. Here are some tips:
- Double-check all your wiring connections. Even one loose wire can cause an error.
- Test parts like the door lock switch and motor again. One of them might still be bad.
- As a last resort, you may need to replace the control board.
With some determination, you’ll get that pesky F90 fixed for good! Now go and enjoy your Frigidaire range once more.
Conclusion
After following the step-by-step troubleshooting guide, you were able to successfully diagnose and fix the F90 error on your Frigidaire range. Give yourself a pat on the back!
Repairing home appliances can feel daunting, but have no fear – you now have the knowledge and experience needed to tackle this particular error code. While it may have taken some time and effort, just think of all the money you saved by doing it yourself rather than calling an expensive technician. Great job!
Let’s recap what you learned:
- Safety always comes first when doing repairs. Make sure to unplug the appliance, shut off the gas, and take other precautions.
- Methodically testing parts like switches, motors, and wiring connections is key to finding the source of the problem.
- Using a multimeter to check continuity and resistance gave quantifiable data to pinpoint issues.
- Replacing inexpensive parts like switches and wires solved the problem without buying whole new assemblies.
- Following instructions carefully led to successfully getting the range back up and running.
The next time an appliance acts up, you now have the confidence to tackle it! These handy do-it-yourself skills will save you money over the years. If you run into any other odd error codes or issues down the road, don’t hesitate to look for helpful self-repair articles like this one. With the power of knowledge and a few tools, you can troubleshoot many appliance problems right in your own home.
