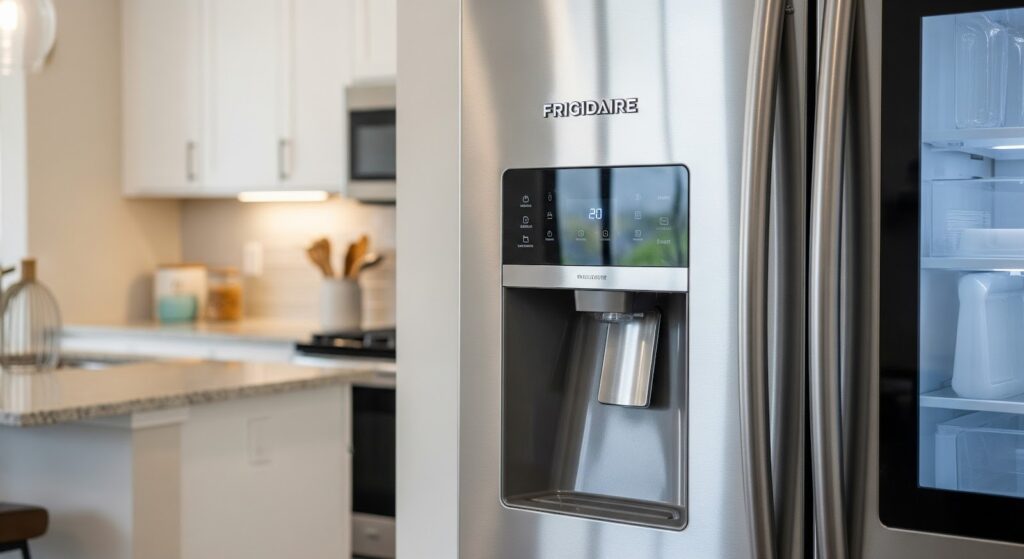

If your Frigidaire refrigerator’s water or ice dispenser has stopped working, a broken dispenser switch may be the cause. This small switch activates when you press the dispenser paddle, sending a signal to release water or ice. When the switch fails, the dispenser may stop working even if the paddle still moves.
The good news is that replacing the switch is a simple repair you can do yourself. With a few tools and careful steps, you can restore your refrigerator’s dispenser function in under an hour.
Tools You Will Need
- Phillips head screwdriver
- Work gloves (preferably insulated)
- Towels to catch any water
- Flashlight for better visibility
Safety Guidelines Before You Begin
Always follow safety precautions when working on home appliances:
- Unplug the refrigerator or switch off the circuit breaker to stop power from reaching the unit. This helps prevent electrical shock.
- Turn off the water supply to the fridge. This reduces the chance of leaks while working.
- Wait until the refrigerator has cooled if it was recently used.
- Dry the work area completely before starting any repair.
- Clear the space of clutter to make your work easier and safer.
- Wear gloves to protect your hands from sharp parts inside the appliance.
- Do not touch any exposed wires. Use tools with insulated handles if you need to work near wiring.
- Use a flashlight if needed to see small screws or parts clearly.
- Keep children and pets away from the area during the repair.
- Refer to the refrigerator’s manual for any model-specific tips or instructions.
- If the repair involves dust or chemicals, use safety glasses or a dust mask to protect yourself.
Signs the Dispenser Switch Needs to Be Replaced
It may be time to change the dispenser switch if:
- Pressing the paddle does not activate water or ice
- A clicking sound is heard, but nothing is dispensed
- The paddle moves but does not respond as expected
- Testing shows the switch is not working properly
- The dispenser works off and on, or not at all
Common Causes of Dispenser Switch Failure
Several issues can cause the dispenser switch to stop working over time. Identifying the cause helps prevent the problem from repeating after the switch is replaced.
These are the most common reasons:
- Regular wear from daily use
- Electrical shorts or faulty wiring
- Water leaks or moisture getting into the dispenser housing
- Dirt or mineral buildup from hard water exposure
- Damage from slamming the paddle too forcefully
- Improper installation of previous parts or repairs
How to Replace a Dispenser Switch in Your Refrigerator
Follow these steps to remove the old dispenser switch and install a new one to restore proper function to your ice and water dispenser.
Disconnect Power and Water
- Unplug the refrigerator from the wall outlet.
- Turn off the water supply to the refrigerator.
Remove the Dispenser Cover
- Locate the dispenser tray at the bottom of the dispenser area.
- Remove the three screws underneath the dispenser tray.
- Lift and remove the dispenser cover from the front panel.
- Disconnect the wiring harness connected to the dispenser control board.
Access the Dispenser Housing
- Find the dispenser housing behind the cover.
- Remove the four screws securing the dispenser housing.
- Carefully slide the housing out to reveal the components inside.
- Locate the dispenser switch in the center of the housing.
Replace the Dispenser Switch
- Remove the screw that holds the old dispenser switch.
- Disconnect the wires from the old switch.
- Take out the old switch from the housing.
- Connect the wires to the new dispenser switch.
- Insert the new switch into the housing.
- Tighten the screw to hold the new switch in place.
Reassemble the Dispenser Area
- Slide the dispenser housing back into position.
- Reinstall the four screws to secure the housing.
- Reconnect the wiring harness to the control board.
- Fit the dispenser cover back onto the front panel.
- Secure the cover with the three screws you removed earlier.
- Reattach the dispenser tray and tighten its screws.
Restore Power and Test
- Plug the refrigerator back into the power outlet.
- Turn the water supply back on.
- Test the ice and water dispenser to confirm the new switch works properly.
What’s Next?
If your dispenser is working again after the switch replacement, then your repair was a success. Taking care of small issues like this helps keep your refrigerator running smoothly and saves you from unexpected breakdowns. This kind of fix doesn’t need advanced tools or a service call, just some time and attention.
If the problem comes back later, it may be a sign of a deeper issue with wiring or other internal parts. But in most cases, a new switch is all it takes to get things working again. Keep an eye on how the dispenser responds in the coming days so you can catch any new problems early.
